中国小型挖掘机进出口优质服务商
China’s small excavator import and export quality service provider

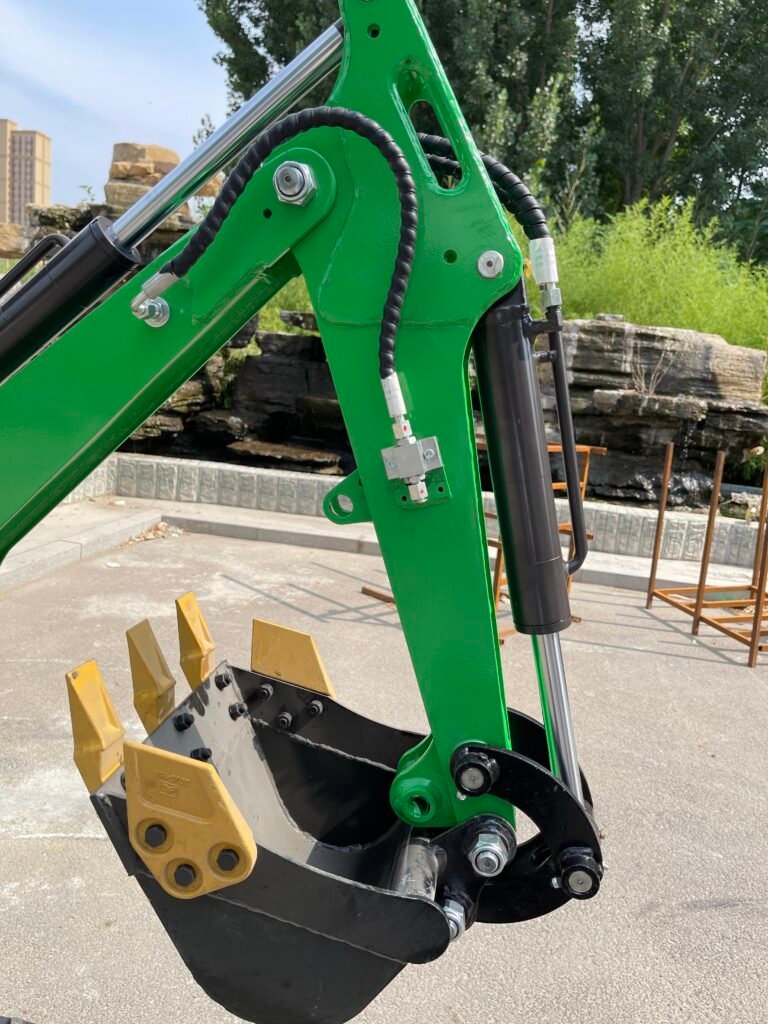

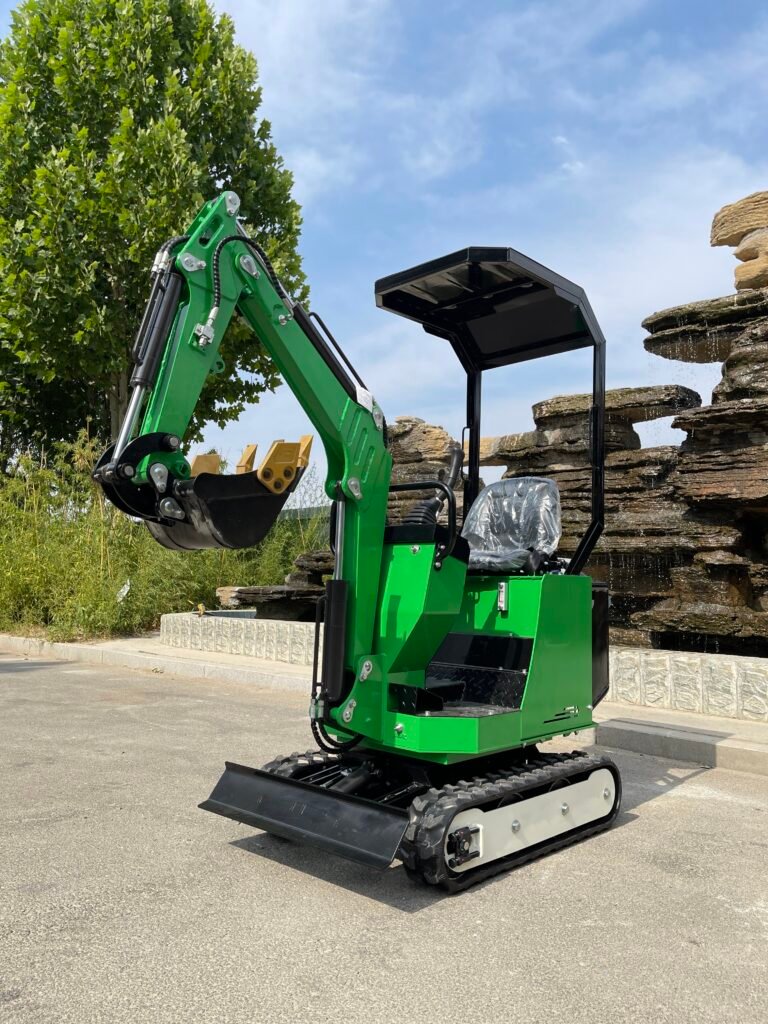

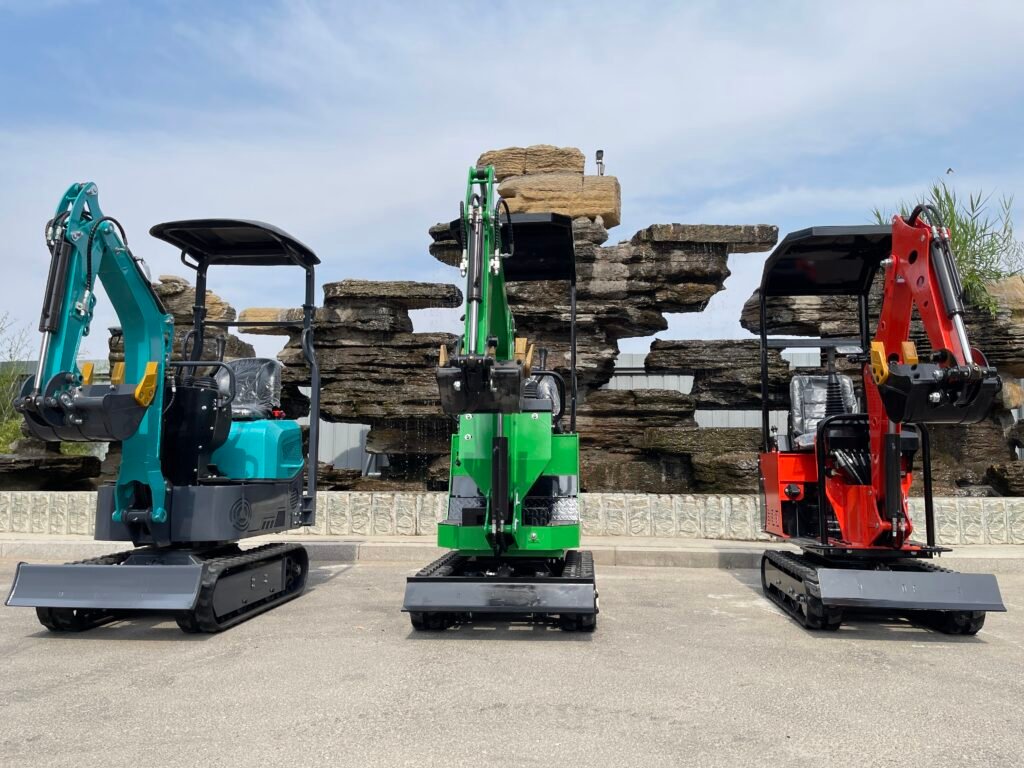

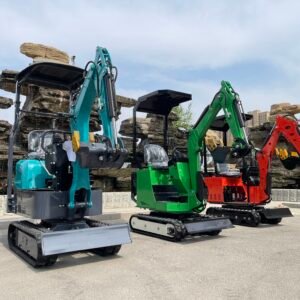

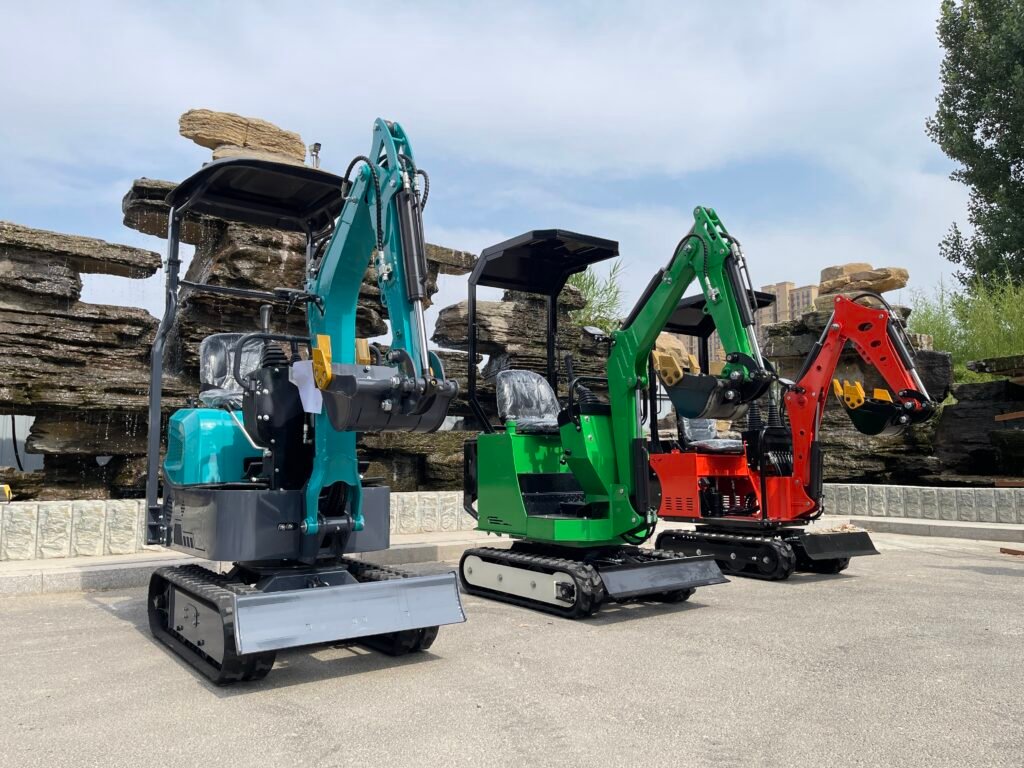

This small excavator is compact, flexible and powerful. It has a variety of auxiliary tools such as Rake, 20cm narrow digging bucket, 80cm flat bucket, 50cm screening bucket, soil loosening device, wood grabbing tool, breaking hammer, spiral drill, etc.
PT – 0.8
| Power | KW | 8.6 |
| Bucket capacity | m³ | 0.025 |

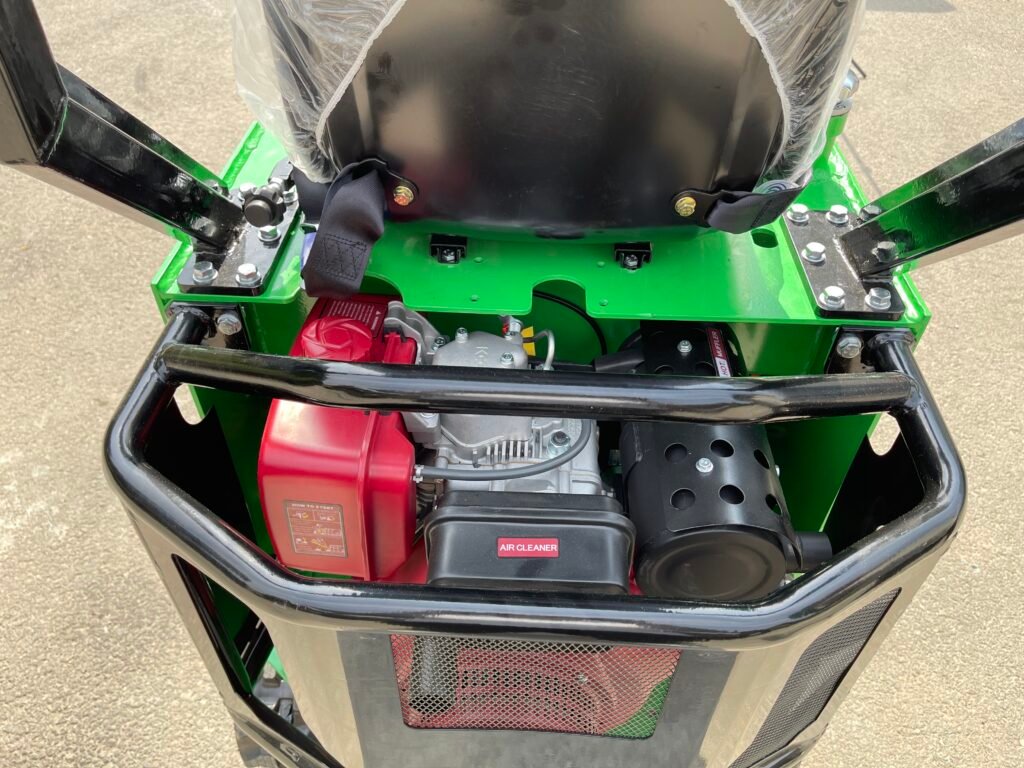

| Engine Model | Briggs & Stratton EPA | |
| Weight | KG | 636 |
| Digging force | KN | 7.5 |
| Pump type | Monomer gear pump | |
| working pressure | Mpa | 14 |
| Rotation speed | Rpm | 12 |
| Travel speed | Km/h | 2.2 |
| Climbing ability | ° | 30 |
| Ground pressure | Kpa | 19 |
| Working scope | ||
| Maximum digging distance | mm | 2450 |
| Maximum digging depth | mm | 1300 |
| Maximum digging height | mm | 2350 |
| Maximum unloading height | mm | 1600 |
| Minimum turning radius | mm | 1100 |

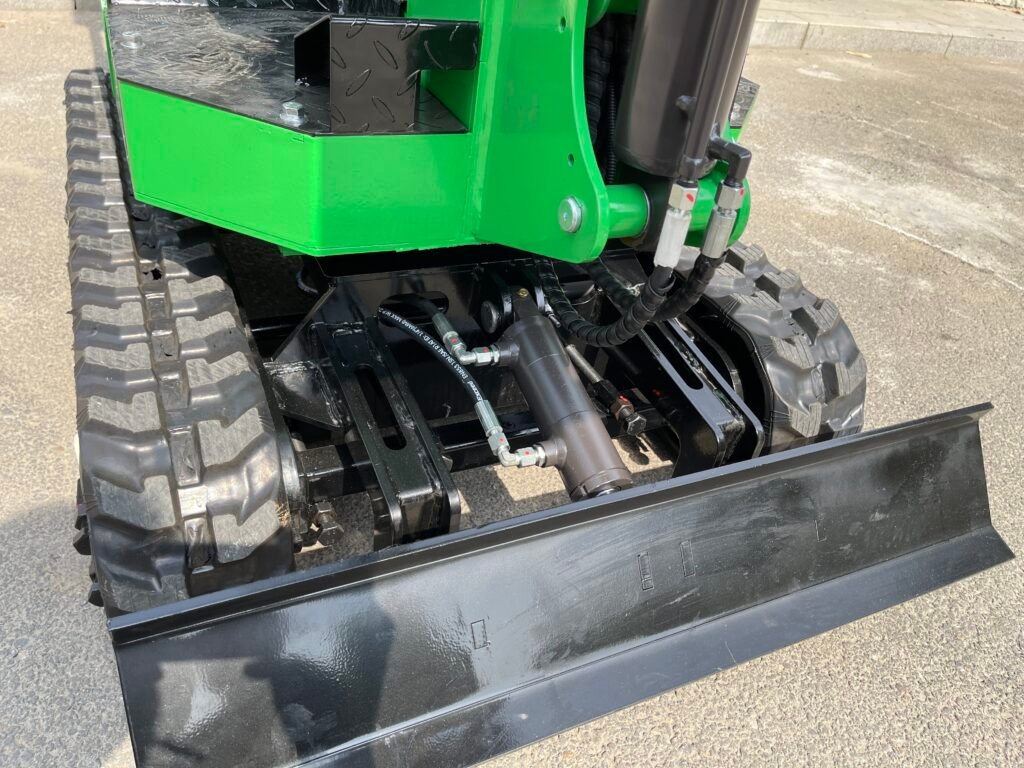

| Maximum ground clearance of bulldozer | mm | 120 |
| Maximum support depth of bulldozer | mm | 200 |
| Dimensions | ||
| Overall width | mm | 780 |
| Overall height | mm | 1390 |
| Overall length | mm | 2430 |
| Minimum ground clearance | mm | 80 |
| Track ground length | mm | 1140 |
| Track width | mm | 150 |
PT – 1.0
| Power | KW | 7.6/7/9.2 |
| Bucket capacity | m³ | 0.025 |
| Engine Model | Briggs & Stratton EPA | |
| Weight | KG | 700 |
| Digging force | KN | 7.5 |
| Pump type | Gear Pumps | |
| working pressure | Mpa | 25 |
| Rotation speed | Rpm | 12 |
| Travel speed | Km/h | 3 |
| Climbing ability | ° | 30 |
| Ground pressure | Kpa | 19 |
| Working scope | ||
| Maximum digging distance | mm | 3010 |
| Maximum digging depth | mm | 1520 |
| Maximum digging height | mm | 2400 |
| Maximum unloading height | mm | 1610 |
| Minimum turning radius | mm | 1360 |
| Maximum ground clearance of bulldozer | mm | 140 |
| Maximum support depth of bulldozer | mm | 200 |
| Dimensions | ||
| Track width (tension screws) | mm | 830（880） |
| Total height (carport) | mm | 1370（2080） |
| Total length | mm | 2780 |
| Track ground contact length | mm | 1140 |
| Outer diameter of wooden box packaging | mm | 2860*940*1570 |
PT – 1.2
| Weight | KG | 900 |
| Engine | Briggs & Stratton EPA | |
| Rated power | KW | 8.6 |
| Working pressure | Mpa | 16 |
| Travel speed | KM/h | 2.2 |
| Slewing speed | r/min | 13 |
| Bucket capacity | m³ | 0.025 |
| Fuel tank capacity | L | 10.2 |
| Gradability | ° | 30 |
| Ground pressure | kpa | 20 |
| Arm digging force | KN | 4.6 |
| Bucket digging force | KN | 7.2 |
| Dimensions | ||
| Total length | mm | 2876 |
| Total width | mm | 850 |
| Total height (seat) | mm | 1535 |
| Total height (carport) | mm | 2200 |
| Counterweight ground clearance | mm | 385 |
| Minimum ground clearance | mm | 132 |
| Tail turning radius | mm | 800 |
| Track ground length | mm | 900 |
| Track length | mm | 1233 |
| Track gauge | mm | 670 |
| Track width | mm | 840 |
| Track shoe width | mm | 180 |
| Working scope | ||
| Maximum digging height | mm | 2550 |
| Maximum dumping height | mm | 1687 |
| Maximum vertical arm digging depth | mm | 1626 |
| Maximum digging distance | mm | 3077 |
| Maximum digging distance at ground level | mm | 2992 |
Your Idea Matters!
The small and flexible mini excavator is suitable for working in small spaces such as gardens, farms, courtyards, roads, and municipalities.
Agility
Small and agile like an elf.
Why Choose Us
Passionate
Professionalism because of passion, with efficient and considerate service, you will feel unprecedented peace of mind.
Professional

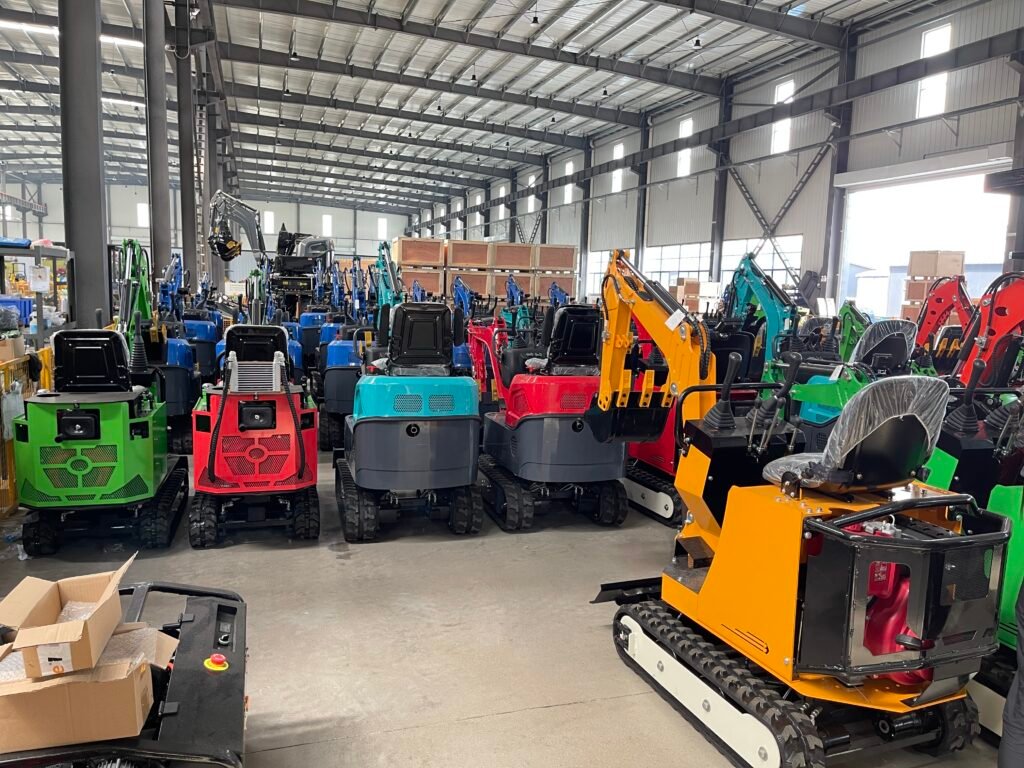

More than ten years of manufacturing experience,
the equipment is more durable.
Support
Longer warranty and global technical support.
